Pure HiTech products
For more than 40 years in Lübeck, Gemany by the Baltic Sea, we have been manufacturing high-tech cleaning wipers, clean paper and special gloves primarily for use in cleanroom environments in semiconductor production and pharmaceuticals, biotechnology, optics, aerospace and implant surgery.
We also manufacture comfort gloves for handling industrial glass products.
HiTech cleaning wipers
Cleaning wipers for various cleaning tasks in the clean manufacturing environment:
HiTech consumables
Further consumables for use in clean rooms and in the pure production environment:
HITECH CLEANING WIPERS
MADE IN GERMANY
Precision cleaning
High-density special knitted wiper for the precision cleaning of smooth surfaces.
Microfiber knit wiper
in various decontamination stages
Material: PES / PA
Cutting edge: laser
Mesh per cm²: 900
Precision cleaning
Thickness: 0.33 mm
Surface weight: 151 g / m²
Water absorption max: 237 g / m²
Fine cleaning effectiveness: 94%
TOC purity: 0.28-0.57 mg / g
Particle release: 104 Part 0.5 µm / min
Precision cleaning
Heavy knitted cloth for removing heavy soiling and for the finest precision cleaning tasks
Microfiber knit wiper
in various decontamination stages
Material: PES / PA
Cutting edge: laser
Mesh per cm²: 400
Thickness: 0.72 mm
Surface weight: 265 g / m²
Water absorption max: 556 g / m²
Fine cleaning effectiveness: 93%
TOC purity: 0.05 mg / g Particle release: 102 Part 0.5 µm / min
Fine cleaning
Ultra-pure knitted cloth for fine cleaning with maximum cleaning effectiveness. Suitable for higher requirements
Microfilament knit wiper
in various decontamination stages
Material: PES
Cutting edge: laser
Mesh per cm²: 540
Thickness: 0.60 mm
Surface weight: 185 g / m²
Water absorption max: 431 g / m²
Fine cleaning effectiveness: 83%
TOC purity: 0.20 mg / g Particle release: 275 Part 0.5 µm / min
Fine cleaning
Fine knitted fabric for cleaning cleanroom
typical surfaces
Microfilament knit wiper
in various decontamination stages
Material: PES
Cutting edge: laser
Mesh per cm²: 380
Thickness: 0.52 mm
Surface weight: 147g / m²
Water absorption max: 303 g / m²
Fine cleaning effectiveness: 70%
TOC purity : 0.07 mg / g
Particle release: 307 Part 0.5 µm / min
Special cleaning
Special knitted fabric for cleaning sieves, very high liquid absorption
Microfiber knit wiper
various decontamination levels available
Material: PES
Cutting edge: laser
Mesh per cm²: 170
Thickness: 1.00 mm
Surface weight: 251 g / m²
Water absorption max: 928 g / m²
Fine cleaning effectiveness: 72%
TOC purity: 1.07 mg / g
Particle release: 592 Part 0.5 µm / min
Standard cleaning
Extremely abrasion-resistant nonwoven for cleaning perforated floors as well as for cleaning sharp-edged and rough surfaces
Duro PA / nonwoven
available unfolded, various formats
Material: synthetic fiber
Cutting edge: mechanical
Surface weight: 120 g / m²
Thickness: 0.63mm
Water absorption max: 332 g / m²
Drop absorption time: 154 ms
Fine cleaning effectiveness: 35%
TOC purity : 5.16 mg / g
Particle release: 186 Part 0.5 µm / min
Standard cleaning
Standard nonwoven for general cleaning tasks in less critical areas of the pure production environment
Nonwoven
various formats available, interfold
Material: PES / cellulose
Cutting edge: mechanical
Surface weight: 70 g / m²
Thickness: 0.35 mm
Water absorption max: 361 g / m²
Drop absorption time: 510 ms
Fine cleaning effectiveness: 72%
TOC purity : 0.38 mg / g
Particle release: 785/540 Part 0.5 µm / min
Standard cleaning
Cleaning nonwoven for sensitive surfaces, particularly soft fleece with 100% rotability
Compostable nonwoven
various formats available, interfold
Material: cellulose
Cutting edge: mechanical
Surface weight: 71 g / m²
Thickness: 0.46 mm
Water absorption max: 709 g / m²
Drop absorption time: 28 ms
Fine cleaning effectiveness: 58%
TOC purity : 1.26 mg / g
Particle release: 6861 Part 0.5 µm / min
Standard cleaning
HiTech cleaning nonwoven with particularly high chemical purity. Made from renewable raw materials and 100% rotable
Compostable nonwoven
Various formats available, suitable for interfold
Material: cellulose
Cutting edge: mechanical
Surface weight: 60 g / m²
Thickness: 0.33mm
Water absorption max: 478 g / m²
Drop absorption time: 93 ms
Fine cleaning effectiveness: 88%
TOC purity : 0.44 mg / g
Particle release: 2207 Part 0.5 µm / min
Standard cleaning
Nonwoven for machine cleaning processes or as a separator nonwoven for flat glasses, panes, etc.
Compostable nonwoven
Various formats available, suitable for interfold
Material: cellulose
Cutting edge: mechanical
Surface weight: 23 g / m²
Thickness: 0.11mm
Water absorption max: 108 g / m²
Drop absorption time: 681 ms
Cleaning effectiveness: 72%
TOC purity: 0.81 mg / g
Particle release: 1104 Part 0.5 µm / min
CLEANROOM CONSUMABLES
MADE IN GERMANY
Pre-moistened cleanroom knit wiper
in a reusable container with a lid closure
Microfiber knit wiper type SONIT-MDM or SONIT-HDM
various decontamination levels available
Material: PES
Cutting edge: laser
Meshes per cm²: 380 to 400
Available recipes:
70% iso-propanol (VLSI grade) / 30% DI water
30% iso-propanol (VLSI grade) / 70% DI water
10% iso-propanol (VLSI grade) / 90% DI water
Further recipes on request

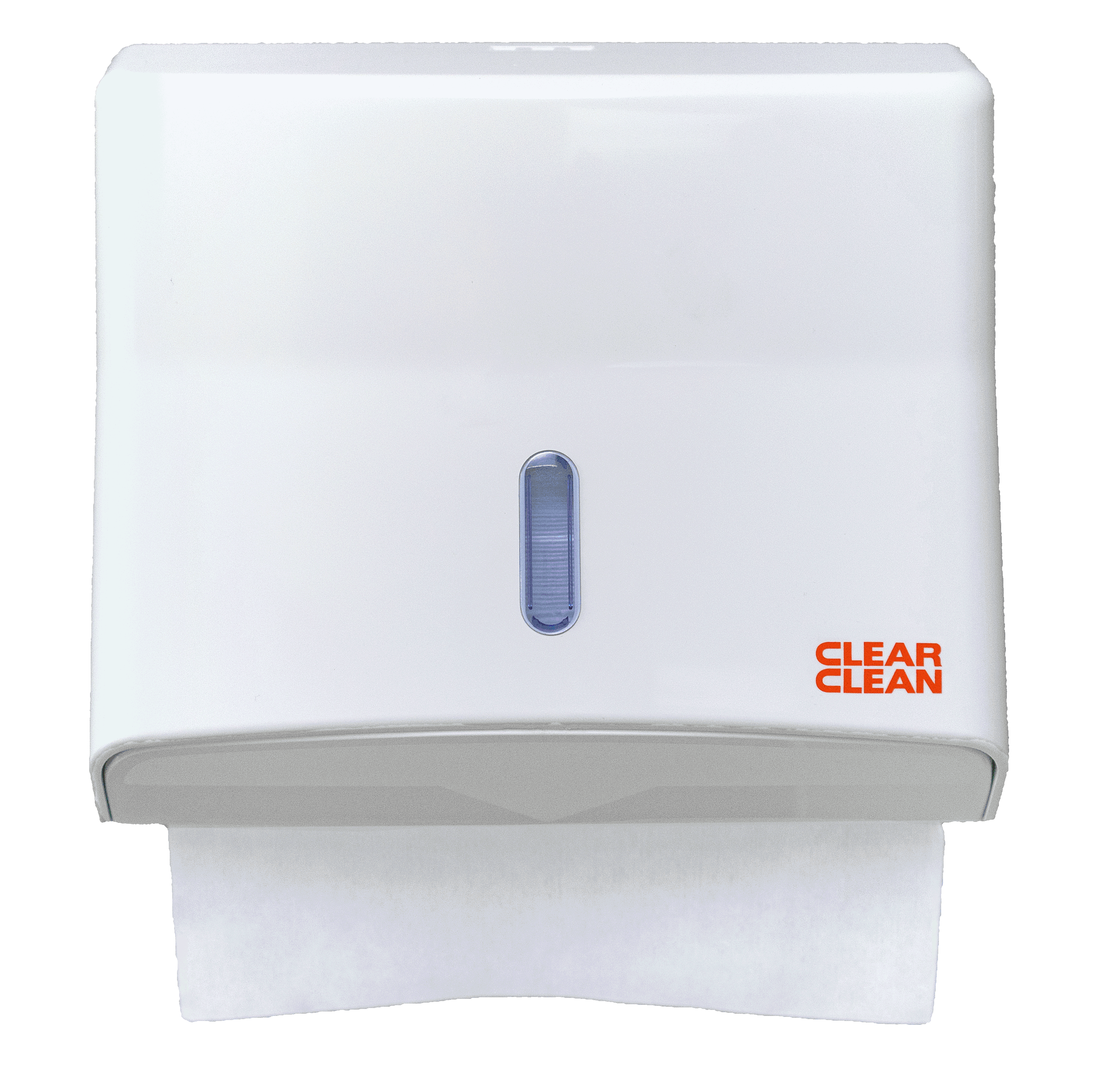

WASPE
Wall dispenser for Interfalz wipers with high capacity
Tissues with a Z-fold and M-fold (interfold) can be removed individually from the dispenser. At the same time, the release of particles when removing the wiper is minimized.
Available high-tech cleaning wipers with interfold:
-
ABSORMAT
-
VISCOT
-
VISCO-PAN
MASTER BOX
Transportable single wiper dispenser for clean room use - suitable for trolleys
Wipers with a Z-fold and M-fold (interfold) can be removed individually from the dispenser. At the same time, the release of particles when removing the wipe is minimized.
Available high-tech cleaning wipers with interfold:
-
ABSORMAT
-
VISCOT
-
VISCO-PAN
Clean room paper with sealed surfaces, extremely low ion levels and decontaminated cut edges
The surfaces of this special paper are sealed with a polymer coating so that neither particles nor ionic contamination can be released.
Available in different formats:
A4
DIN A3
perforated and unperforated
Special formats on request, paper color white
Cleanroom notebooks
Books and pads made from GALAXY cleanroom paper
The books and pads are manufactured in the clean room, and the cut edges are decontaminated.
Available formats:
Notebook A4, spiral binding, 100 pages
Notebook DIN A5, spiral binding, 100 pages
Pocket marker DIN A7, spiral binding, 100 pages
Special formats on request, paper color white
Stretchbond gloves
Elastic and air-permeable comfort gloves for use in clean rooms in the optical industry to avoid fingerprints
These special gloves are extremely comfortable to wear, as air and water vapor pass through the membrane while particles are effectively retained.
Various sizes from S to XL available.
Fleece / fleece for maximum comfort.
Fleece / film for additional protection against liquid media
ISOPADS
Damp cleaning fleece, individually wrapped in a foil pouch for cleaning small parts and shelves
Nonwoven wiper, soaked with a mixture of 70%
2-propanol and 30% DI water, without added surfactants. Suitable for clean rooms, individually packed.
GLASS PADS
Damp cleaning fleece for damp cleaning of glass and plastic surfaces
Nonwoven wiper, soaked with a mixture of 2-propanol,
DI water and an additional surfactant additive. Suitable for clean rooms, individually packed.
PURITY INSPECTION SYSTEMS
MADE IN GERMANY
CC-MICROLITE * NEW *
Device for dual oblique light visualization of particles and material fragments on the basis of light scattering
With this device, the particle and fiber release of high-tech cleaning wipers and other consumables can be determined in a simple way. The device works ideally in combination with the CC collector plate.
CC COLLECTOR PLATE
Versatile collector plate made of glass to visualize minimal contamination.
A detailed presentation of the applications of this test equipment is given in the article "Visualization of Micro Contaminants - Collector Plate for Contaminants in Solvents, Material Imprints and Particles" by Win Labuda.
